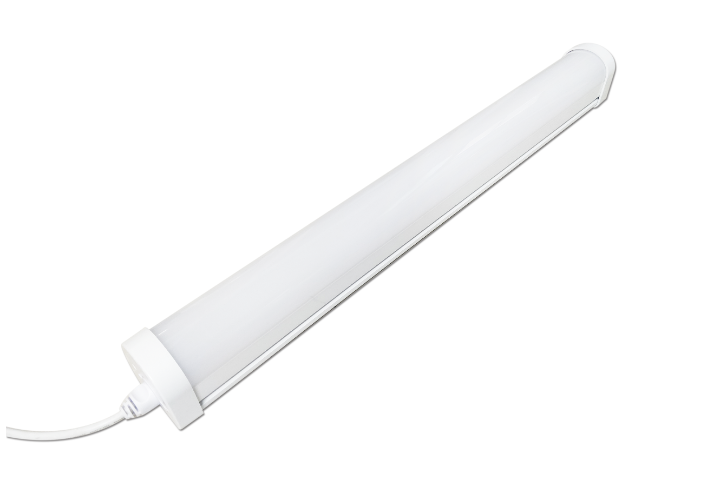

M900A Compact LED Weatherproof Batten Light

This compact LED batten is designed in accordance with Edition 7 of IEC 60595-1:2008-04 and SS563-2010 Spring standard. This series of luminaire is suitable for indoor and outdoor utility lighting applications. The luminaire is providing with optional power saving feature by installing the built-in microwave motion sensor.

installation

The luminaire is designed for either ceiling mounted or suspended installation. Two pieces of stainless steel convex spring brackets could be simply clipped to the glove provided by the fitting and further secured by PM4 x 40mm tightening screws after clip-on.

Two ellipse holes on top of the spring convex bracket are provided for concrete ceiling mounting purposes. Whereas, the round hole at the center would be used for mounting the wire or steel rod for suspended installation.
